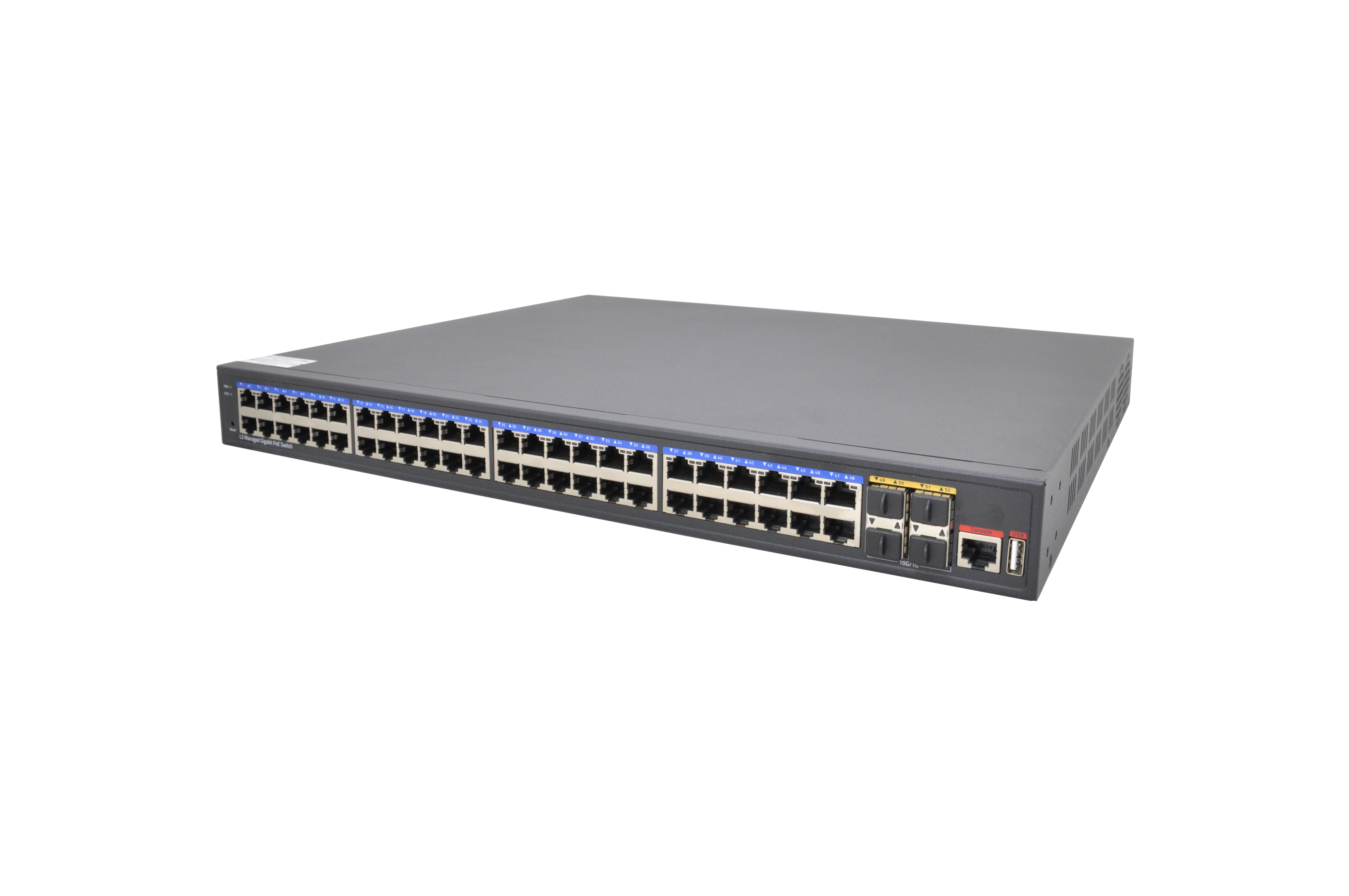

| Ethernet | 48 Port 10/100/1000Mbps POE (Ports 1-4 support BT Power Supply) + 4 Port 10G SFP+ （ The default 10G optical port does not support 2.5G rate, but only supports 10G/1G rate） + 1 Port RJ45 Console + 1 Port USB |
| Power Supply | 52V 11.5A/ 12V 6A |
| Yönetilebilir Layer | 3 |
| Led Göstergeler | PWR (Power Indicator), SYS (system Indicator), Link (Link Indicator), ACT (ACT Indicator) |
| Power Supply | 52V 11.5A/ 12V 6A |
| Voltaj Girişi | AC 100-240 V |
| Maks. PoE Gücü | 650 W |
| Switching Kapasitesi | 176G |
| Throughput | 131Mpps |
| DDR SDRAM | 16Mbit |
| Flash Memory | 32MB |
| Packet Buffer | 512M |
| Mac Adres | 8K |
| Network Protokol | IEEE 802.3: Ethernet MAC Protocol IEEE 802.3i: 10BASE-T Ethernet IEEE 802.3u: 100BASE-TX Fast Ethernet IEEE 802.3ab: 1000BASE-T Gigabit Ethernet IEEE 802.3z: 1000BASE-X Gigabit Ethernet (optical fiber) IEEE 802.3ae: 10G Ethernet（optical fiber） IEEE 802.3az |
| PoE Protokol | IEEE802.3af (15.4W) IEEE802.3at (30W) IEEE802.3bt (90W) |
| VLAN | 4096 |
| Network Medium | 10Base-T : Cat3, 4, 5 veya üzeri UTP(≤100m) 100Base-TX : Cat5 veya üzeri UTP(≤100m) 1000Base-TX : Cat5 veya üzeri UTP(≤100m) |
| Optik Ortam | Multi mode fiber optik: 50/125, 62,5/125, 100/140um / Single mode fiber optik: 8/125, 8,7/125, 9/125, 10/125um |
| Jumbo Frame | 9.6Kbytes |
| Ebatlar | 440 mm x 360 mm x 44,5 mm |
| Çalışma Isısı | -10°C ~ 50°C |
| Depolama Isısı | -40° ~ 70°C |
| Nem Oranı | %10 ~ %90 RH (Yoğuşmasız) |
| MTBF | 100,000 Hour |
| Ağırlık | 5.30 Kg |
